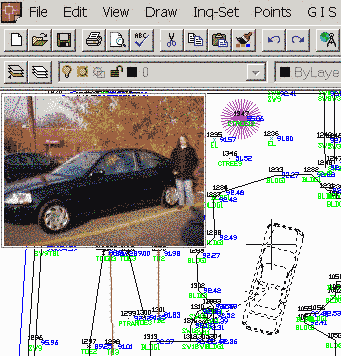

| Car
image displays in upper-left of drawing when cursor
is over car symbol |
This command views images attached to entities. At the start, the program highlights all entities that have attached images. When you move the cursor over these entities, the attached image is displayed in a window. If you click within the image window, the program will start the image application editor that is setup for your system. This application, such as Microsoft Internet Explorer, depends on your Windows system setup. Also while moving the cursor over drawing entities, you can use the arrow, page up and page down keys to pan and zoom the display.
Arrow keys=Pan; PageUp/Down=ZoomOut/In; Pick Image Box = Open
Image!
Move pointer over entity with image (Enter to End):
press Enter
|
|
| Car
image displays in upper-left of drawing when cursor
is over car symbol |
Keyboard Command: view_image
Prerequisite: drawing entity with attached image
File Name: /lsp/gisutil.arx
