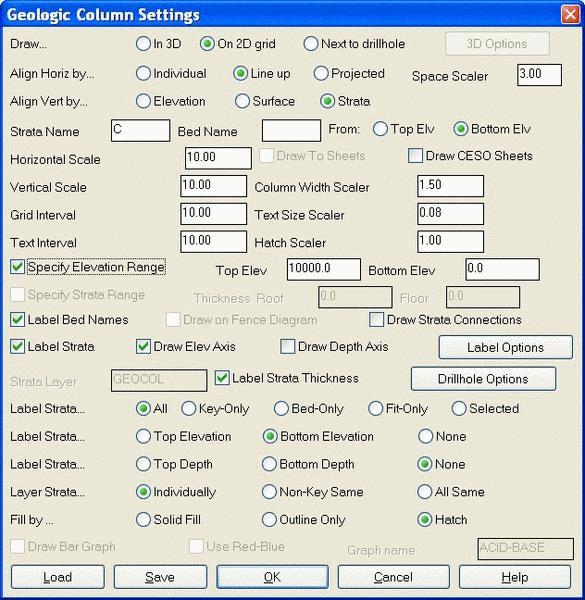

As the name suggests, this command draws geologic columns for the selected drillholes in both 2D and 3D. There are many options for Draw Geologic Column that are specified in the dialog box. Once you have the settings the way you want, you can save the settings to a geologic column settings file (.geo) that can be loaded later. This settings file allows you to store different schemes of geologic columns. Since there are so many options in this command, each one is described separately below.

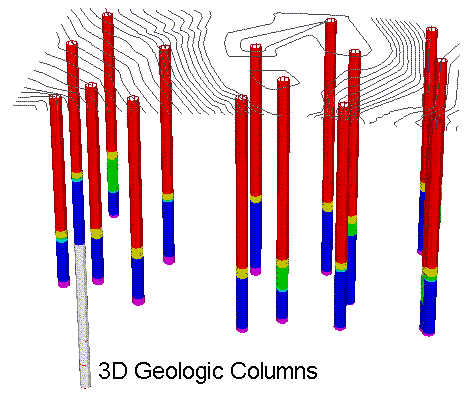

Draw...: The geologic columns can be drawn In 3D, On 2D Grid or Next to the Drillhole. For the 3D method, the column is drawn vertically straight down at the X,Y position of the drillhole. This 3D column can be drawn as a cylinder or as flat rectangles as in the 2D grid option except this time in 3D. The settings for 3D are in the 3D Options screen. The On 2D Grid option will prompt for a starting position and start drawing the holes in a line from the starting point. When using this option, the next row is active to select the alignment. The Next to Drillhole option draws the column on a 2D grid to the right of the drillhole.

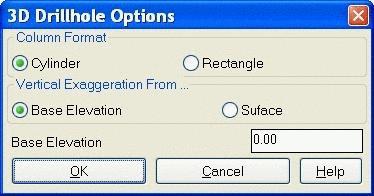

3D Options: The Column Format has two options to draw in 3D. The cylinder will draw faces that may be rendered in the 3D viewer, while the Rectangle just draws 3D polylines of the drillholes. The Vertical Exaggeration has two options for a starting point, either the Base Elevation entered below, or the Surface. The surface option will scale the column elevations using the surface elevation as the base point. The base elevation option uses the specified base elevation as the scale reference. The base elevation method is useful for combining the 3D geologic columns with other exaggerated surfaces such as Block Diagram or grid files. For example, you could run Plot 3D Grid Files for a strata elevation grid file with the vertical exaggeration set to 5 : 1 with a base elevation of 500. Then run Draw Geologic Column with the Horizontal Scale as 50 and the Vertical Scale as 10 and the base elevation as 500. To view the 3D columns, use the Viewpoint 3D or 3D Viewer Window commands.
Align Horiz by...: For the On 2D Grid method, the location for the geologic columns can be picked individually, lined up or projected. The Individual option will prompt for the location to draw each drillhole. The Line Up option places the geologic columns at an even horizontal interval in the order that the drillholes were selected. For the Line Up method, the Space Scaler field determines the horizontal spacing between the columns. The spacing in drawing units is the Space Scaler multiplied by the Horizontal Scale. The Projected option determines the horizontal alignment by projecting the drillholes onto a polyline and then using the distance along the polyline as the horizontal alignment. Also the Projected option also can draw a surface profile polyline. An offset distance from the horizontal alignment polyline can be set to limit the drillholes selected to just those that fall inside the the offset distance. The surface elevations of the geologic columns may not exactly match the surface profile if the drillholes are offset from the alignment polyline.
Space Scaler: When using the Line Up option, this scaler is multiplied by the drawing scale to determine the distance the columns are drawn apart.
Align Vert by...: When using the 2D Grid or Projected options, the geologic columns can be aligned vertically by the real-world elevation, by the surface elevation, or by a strata/bed top or bottom elevation. For example, aligning by the top elevation of strata X would locate all the drillholes such that the top elevation of strata X is drawn in a straight row.
Strata Name: This is the strata name that will be used for the above vertical alignment.
Bed Name: This is the bed name that will be used for the above vertical alignment.
From Top Elv and Bottom Elv: When using the Strata for Align Vert by option, this is the choice for alignment. Either line up the top or bottom elevation of the strata.
Horizontal Scale: The Horizontal Scale is the overall drawing scale that many of the options are scaled by. This usually matches the drawing scale set in Drawing Setup.
Vertical Scale: The Vertical Scale relative to the Horizontal Scale determines the vertical exaggeration. For example, a Horizontal Scale of 50 and a Vertical Scale of 10 would create 5 to 1 exaggeration. When the Draw Elevation Axis or Draw Depth Axis options are on, the program will draw a vertical elevation and/or depth scale to the left of the geologic column.
Grid Interval: The Grid Interval sets the tick mark spacing for the elevation/depth scales The Grid and Text Intervals can be used as the major and minor axis intervals where the Text Interval in the major and Grid Interval is the minor. The tick mark for the major interval is twice as long. For example, the Text Interval could be 25 and the Grid Interval 5.
Text Interval: The text Interval sets the elevation/depth label interval. The Grid and Text Intervals can be used as the major and minor axis intervals where the Text Interval in the major and Grid Interval is the minor. The tick mark for the major interval is twice as long. For example, the Text Interval could be 25 and the Grid Interval 5.
Draw To Sheets: This option will work if the options to Draw on 2D, and Align Horizon by individual are set. It draws the individual drillhole on multiple sheets, breaking it by pages set by the scale.
Draw CESO Sheets: This option was written for a specific company years ago. It draws the columns on their page form for printing.
Column Width Scaler: The Column Width Scaler determines the width of the geologic column by multiplying this value by the Horizontal Scale.
Text Size Scaler: The Text Size Scaler sets the text height of the labels by multiplying this field by the Horizontal Scale.
Hatch Scaler: The Hatch Scaler is a scaler multiplied by all the hatch scale values when using the Fill By Hatch option.
Specify Elevation Range - Top Elev / Bottom Elev: The Specify Elevation Range option draws a section of the geologic column within the range of elevations entered to the right. Together with increasing the vertical exaggeration factor, this option can be used to highlight a section of the geologic column. This is used if the entire drillhole does not need to be displayed.

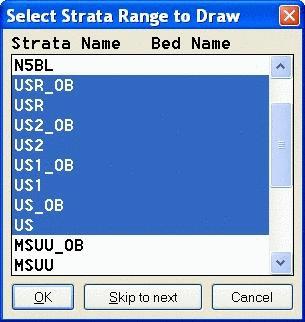

Specify Strata Range - Thickness Roof / Floor: The Specify Strata Range option draws a section of the geologic column within the range of strata. Together with increasing the vertical exaggeration factor, Specify Strata Range can be used to highlight a section of the geologic column. With the strata range option, the program will show a dialog with a list of the strata. You can select multiple strata in this dialog by highlighting the top strata and then picking the bottom strata while holding hold the Shift key. Also for the strata range option, you can specify additional thickness above and below the strata range by using the Thickness Roof and Floor fields. this will add a "roof" and "floor" interval to the column.
Label Bed Names: This option labels the bed names next to the column. It may be used in addition to the Label Strata Names.

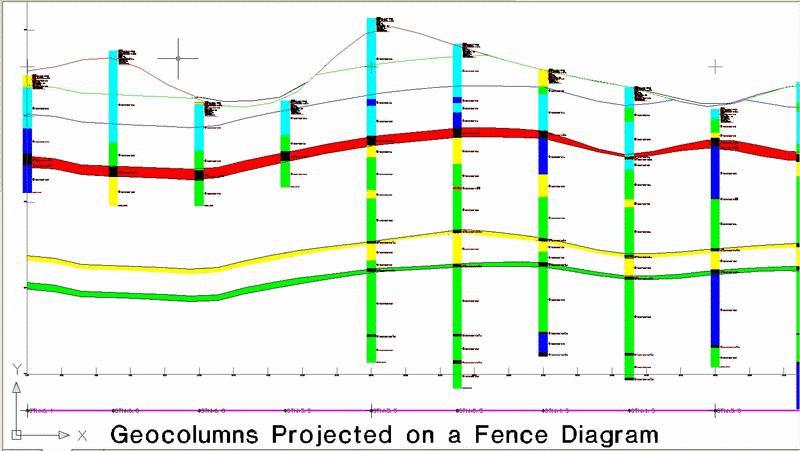

Draw on Fence Diagram: The geologic columns can be drawn on a fence diagram. First run the Fence Diagram routine. Then run Geologic Column and choose the Align Horizontally by Projected and Draw on Fence Diagram options. Also be sure that the horizontal and vertical scales match the fence diagram scale. Then the program will prompt you to select the fence diagram plan-view alignment polyline and the drillholes. Then you pick the lower left grid corner and enter the bottom elevation of the fence diagram grid. The columns should appear on the fence diagram for a visual comparison with the grids that made the fence diagram.

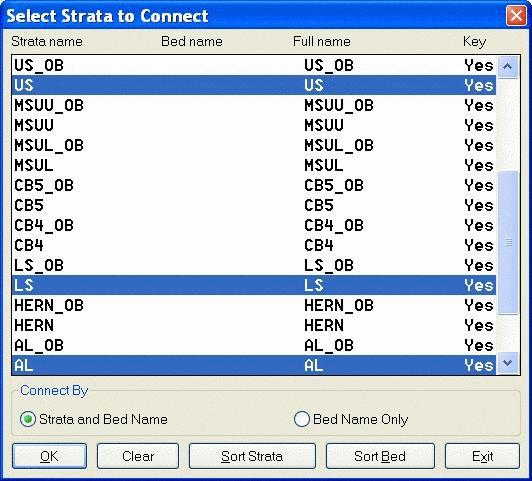

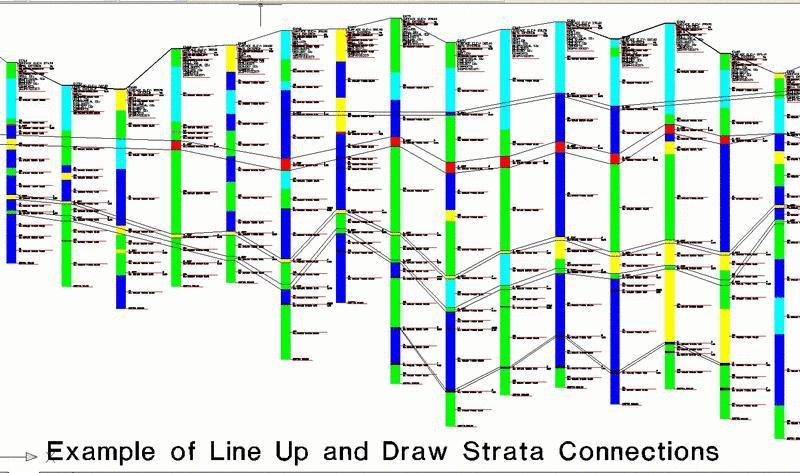

Draw Strata Connections: This option will draw lines between
the columns to connect the
selected strata or beds. This option will display a dialog with a list
of
strata to choose to connect. Multiple
strata can be selected by using the Shift and Ctrl keys while picking
the names. The Connect By Bed
Name Only
option will connect only strata
that have a
matching bed name. Be aware it does not pinch the strata or bed out if
it does not appear in a drillhole, it will draw the line right over the
hole to the next one. Remove Polyline segment can be used to clean up
the drawing.
Label Strata: This option labels the strata names next to the columns.
Draw Elev Axis: This option draws an elevation grid next to each individual column, or just at the beginning of a row of columns.
Draw Depth Axis: This option draws a depth grid next to each individual column, or just at the beginning of a row of columns.

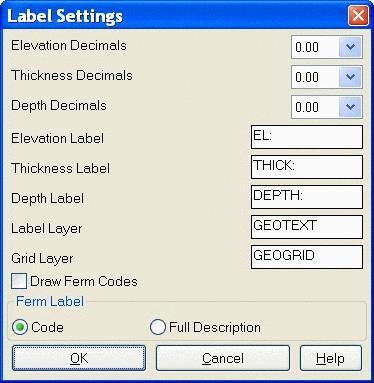

Label Options: This button brings up the Label Settings dialog that sets the decimal precision and label prefixes for elevation, thickness and depth. You can also set strata label layer and the grid text layer. The Draw Ferm Codes option will label the ferm code next to the strata name either as the short ferm code name (i.e. "RSS") or as the ferm code full description (i.e. "Red Sandstone"). The ferm codes are defined in the Define Ferm Codes command and the ferm codes are assigned to the strata in the strata attributes. If Ferm codes are used and a corresponding strata attribute is defined, then the ferm hatch pattern, color and layer are used instead.
Strata Layer: This option is active if Strata Layer is set to NonKey Same, or All Same. The layer is entered here. Otherwise, each is drawn in a layer based on strata and bed name.
Label Strata Thickness: Turn this option on to label the thickness of each interval next to the columns.

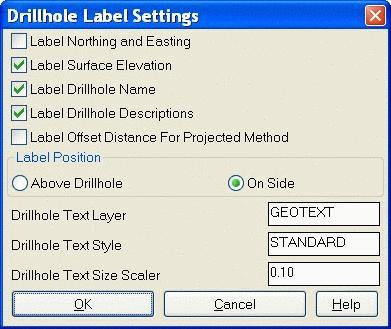

Drillhole Options: This button brings up the Drillhole Label Settings dialog with options whether to label the drillhole northing-easting, drillhole surface elevation, drillhole name and/or drillholes descriptions. There is also an option to label the offset distance from the projection line if the Projection alignment option is used. All of these labels are drawn at the top of the columns, near the collar. You can also set the layer, style and size with scaler, for the drillhole text labels. The drillhole labels can be drawn center justified above the column or to the right of the column.
Label Strata - All: To handle crowded strata labels, there are several options for labeling the strata. The All option labels all the strata. The Key-Only option labels only key strata. The Bed-Only option labels only the strata with bed names. The Fit-Only option labels only strata with enough thickness to fit the label at the specified label size. The Selected option brings up a dialog with a list of strata to choose from.
Label Strata - Elevations: This setting will label the top elevation, bottom elevation, or no elevation.
Label Strata Depths: This setting will label the top depth, bottom depth, or no depth.

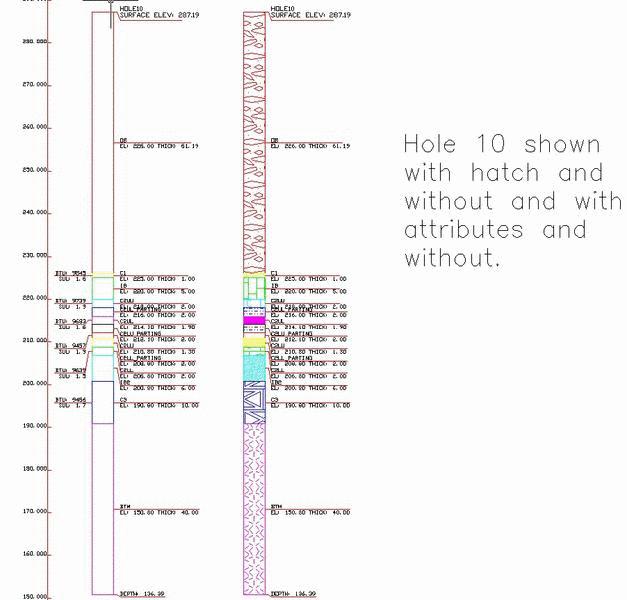

Fill by: Solid will fill the columns with a solid fill. Outline will just outline the intervals with no fill or hatch. Hatch will hatch the columns using the predefined hatches in the Define Strata SDF file.
Draw Bar Graph-Use Red-Blue: The Draw Bar Graph option creates acid-base accounting graphs that are drawn to the right of the geologic column. These graphs are a logarithmic bar graph and a scatter graph. The strata attributes are used as the values for the graphs. The program will prompt for both a key and non-key attribute for the bar graph and the scatter graph. Negative values are drawn to the left on the bar graph and the range of the bar graph is -100 to 100. Values that exceed this range are drawn to the range maximum and then labeled with the real value. The range on the scatter graph is 4 to 8 and values that exceed this range will be drawn off the graph.

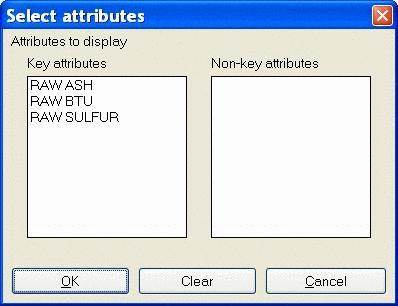

Select Attributes: If the drillhole has attributes, they can be selected in the Select Attributes window for labeling. They are drawn on the right hand side of the columns.

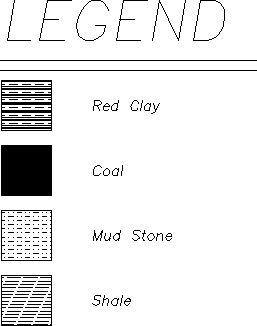

A legend for the strata hatch patterns can be created with the
Draw Legend command in the Annotate menu of the Survey
module.
Angled
Holes:

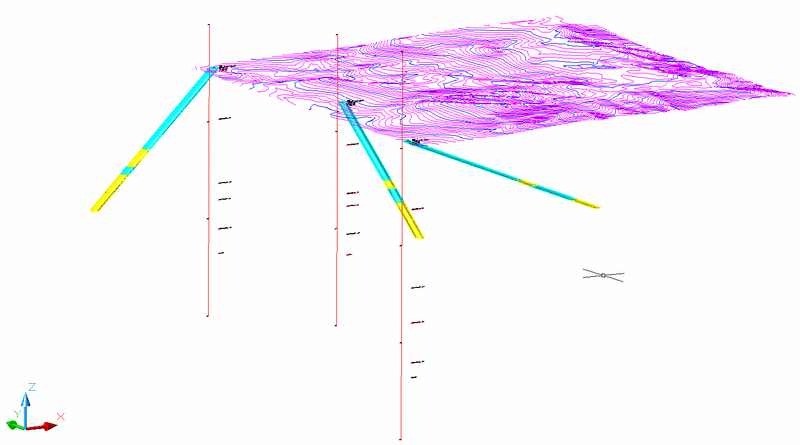

Carlson will model angled drillholes. There needs to be two attributes
added to the drillhole. This is either entered under Drillhole
Description, or as a Strata Description. The two attributes are
SC_AZI and SC_DIP. These represent the Azimuth and Dip of the
drillholes. The Azimuth is 0-360 degrees. The Dip is 0-90, with 0
vertically down. Shown here is a 3D view of geologic columns draw, with
the angles shown.
Geologic Column Settings dialog
Select DrillHoles for geologic column.
Select objects: pick the drillhole symbols
Select Attributes to Draw dialog
Pick location for geologic column: pick or enter the
bottom center
point for the geologic column
Pulldown Menu Location: Drillhole
Keyboard Command: geocol
File Names: \lsp\geocol.lsp, \lsp\corehole.arx,
\lsp\corehole.dcl
